A smart notice board can be a great way to keep your office organized and streamlined. With the help of an Arduino, Bluetooth module,andLED matrix. you can create a board that can detect when someone is approaching, and then display relevant information on the board. This could include the person's name, the time, or a list of tasks that need to be completed. This would be a great way to keep everyone in the office on track, and it would be easy to update with new information as needed.

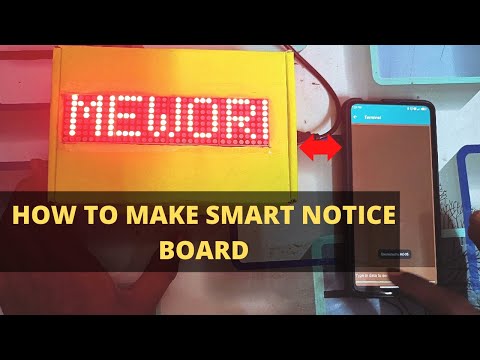

Making Video :
Circuit :
Click here to download circuit
Code:
#include <MD_Parola.h>
#include <MD_MAX72xx.h>
#include <SPI.h>
#define HARDWARE_TYPE MD_MAX72XX::FC16_HW
#define MAX_DEVICES 4
// for ARDUINO
#define CLK_PIN 13
#define DATA_PIN 11
#define CS_PIN 10
MD_Parola P = MD_Parola(HARDWARE_TYPE, CS_PIN, MAX_DEVICES);
uint8_t scrollSpeed = 71;
textEffect_t scrollEffect = PA_SCROLL_LEFT;
textPosition_t scrollAlign = PA_LEFT;
uint16_t scrollPause = 100;
#define BUF_SIZE 75
char curMessage[BUF_SIZE] = { "" };
char newMessage[BUF_SIZE] = { "MEWORKS TELUGU" };
bool newMessageAvailable = true;
void setup() {
Serial.begin(9600);
P.begin();
P.displayText(curMessage, scrollAlign, scrollSpeed, scrollPause, scrollEffect, scrollEffect);
}
void loop() {
if (P.displayAnimate()) {
if (newMessageAvailable) {
strcpy(curMessage, newMessage);
newMessageAvailable = false;
}
P.displayReset();
}
if (Serial.available()>0) {
String st = Serial.readString();
Serial.println(st);
st.toCharArray(newMessage, BUF_SIZE);
newMessageAvailable = true;
}
}
Click here to download the code
if you have any doubts regarding this project, contact me on Instagram or comment on the YouTube video. I will help my best.
